For wooden door / wooden window

Mounting        Surface Mounted

Housing               ABS ,white /brown
Operating Distance 15-25mm
                            20-25 mm available
Output                 N.C.
                            N.O.  available
Max Voltage      100Vdc

Max Current      0.5A

Max Power       10 W

Dimension            50*14*12mm

Package
Inner packing            10sets/PE
Outer packing           800 sets/carton
Gross Weight            20.0KG
Remarks                  4 screws including

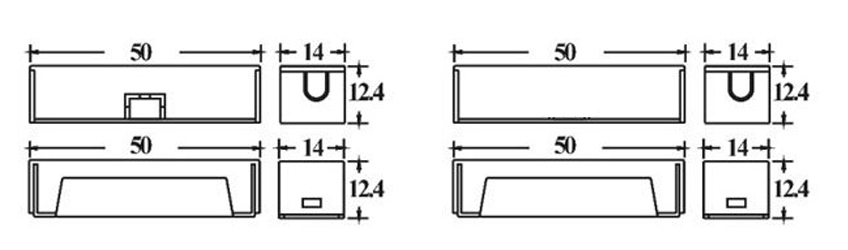

Technical Diagram
