Product name:
  • GSM + PSTN dual network alarm panel GSM-816 Model: GSM-816
    GSM + PSTN dual network alarm panel
    8 wired or 16 wired zones optional
    16 wireless zones
    ADEMCO4+2, CID digital communication protocol

Introduction

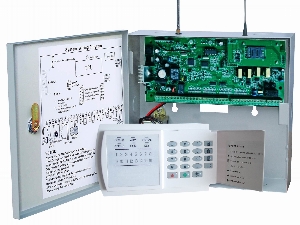

 GSM + PSTN dual network alarm panel GSM-816

GSM-808-16R: 8wired zones +16 wireless zones

GSM-816-16R: 16 wired zones+ 16 wireless zones

High speed digital communication, compatible ADEMCO4+2, CID digital communication protocol;Send alarm signal to alarm center.

GSM, fixed telephone, SMS, GPRS multiple alarm transmission mode

Custom modify alarm message alarm content

GSM, fixed telephone network to dial, you can customize which priority network

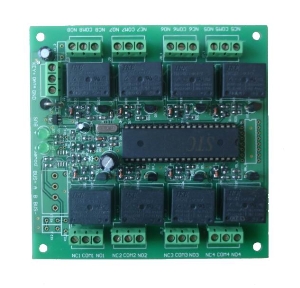

With eight-way output module can be customized output: Linkage output; remote control output (mainly USED in linked with the monitoring, control home appliances. Lamp)

Different programmable settings, such as alarm sounds, zone types, recording, monitoring, remote controlling, telephone number, phone line Check, and etc.

Compatible with wired and wireless function

1 group 6 bits primary passwords, 15 groups subsidiary setting passwords are available to improve security;

6 groups of phone number and 3 group alarm center phone number could be set. When the alarm activated, it could repeat dialing the numbers.

9 ARM modes: SMS protection, exit ARM, boundary ARM, single zone ARM, delay ARM, remote ARM, compel ARM, remote ARM and preset time ARM.

7 DISARM modes: SMS alarms, single zone DISARM, keypad password DISARM, long distance DISARM, time DISARM, remote setting DISARM, DISARM when connecting alarm.

8 zone modes: instant zone, delay zone, 24 hours zone, boundary zone , fire alarm zone, gas zone, check zone, and BY-PASS zone

Remote control function, external monitor, monitoring from long-distance.

Built-in voice module, 10~20seconds record, voice alarm function

Set the alarm delay time and siren yelp time

Search record of emergency

Remote controller can be used to set alarm, DIS-ALARM, emergency alarm and other operation.

Operate from keypad, easily and convenient.

Phone line malfunction indication function: system will alarm when phone line is cut off or short.

The alarm dialling is in priority

Backup DC 12V 7AH sealed lead rechargeable battery support work when AC power cut off

“Watch dog” function, to avoid system down.

Remark: Pull out the jumper head in JP1 of the main panel after finishing program for the main panel, which can prevent other person operate the main panel and improve security.
