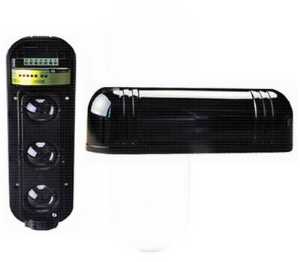

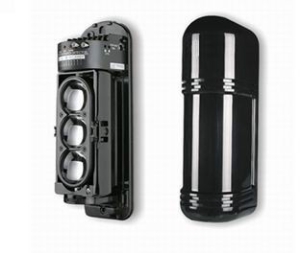

3 beams outdoor active infrared beam detector

Detailed Features

Three Beams simultaneously block inspection

Digital Frequency Conversion(Optional)

Active Infrared Beams

Infrared LED Lighting

Detachable sighting telescope

PC engineering plastic material

Dew and frost proof solution;

Heating housing (Optional)

Technical specifications:

Response speed: 50 to 700m/sec adjustable

Alarm output: 1C relay contact output, contact capability DC30V/0.5A max

Power and voltage: DC12~24V, AC 11~18V

Working temperature: -25℃ ~ 55 ℃

Tamper output: 1B contact output, DC30V/0.5A max

Optical axis adjust angle(horizontal):180°(±90°)

Optical axis adjust angle(vertical): 20°(±10°)

Weight: 800g for transmitter; 800g for receiver; 2000g for each pack (including bracket)

Valid length:27CM
