- Infrared Fence
-
-

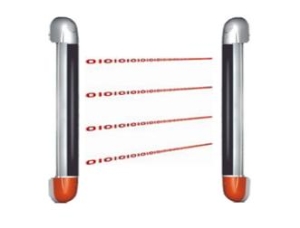

Outdoor Active Infrared barrier with 110dB siren inside ESW-12250
Model: ESW-12250
Outdoor Beam Sensor
110dB siren inside
Remote Control to ARM/DISARM
Waterproof
Wireless wired compatiable type available
- Introduction
Outdoor Active Infrared Wall
1) Siren inside, 110dB, Waterproof . No need connect extra siren.
2) Remote control optional, arm & disarm by remote.
3) Silvery white or black color optional. Wired/wireless optional
4)Micro-processing digital intelligent control technology adopted. Integrates the advantages of infrared beams and infrared fence.
5) High-quality aluminum alloy shell and PC engineering plastics joint.
solid, durable, wire-cutting preventing, anti-demolition, anti-moving, rain-proof and moisture-proof.
6) Wired, wireless, multi-beam and multi-height optional
7) Easy to install
The products applies the 8-grade highlight indicator, capable of precise focus and 360-degree adjustment. Furthermore, the independent installation bracket can be applied to any position.
8) On spot alarm
The product is equipped with the built-in interface of external alarm signals which allows the connection of the DC12V high-decibel alarm signals
Infrared Beams
2 Beams
3Beams
4 Beams
6Beams
8Beams
10Beams
12 Beams
Effective length (cm)
22
38
50
80
110
140
170
Overall length (cm)
39
55
67
97
127
157
187
Overall weight (Kg)
1.02
1.23
1.45
1.76
2.05
2.44
2.96
Overall Quiescent Current (mA)
95 max
95 max
110max
120max
120max
120max
120max
Alarm current with speaker (mA)
350 max
350max
380max
400max
400max
400max
400max
Guarding distance (outdoor：m)
20
20
20
20
20
20
20
30
30
30
30
30
30
30
40
40
40
40
40
40
