- Infrared Fence
-
-

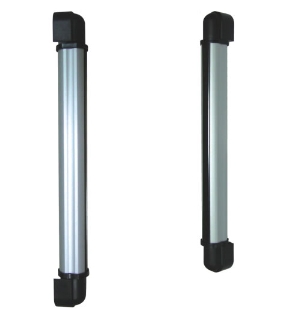

Outdoor Infrared Baluster/ active Beam Sensor
Model: ES-10200
Outdoor Infrared Baluster
Active Beam Sensor
Duplex type optional
Waterproof, dustproof
Wired wireless type optional
- Introduction
Outdoor Infrared Baluster/ active Beam Sensor
2 beams, 4 beams,6 beams,8 beams or 10 beams for choice, vertical coaxial adjustment on each unit, fast, easy and accurate.
Can adjust the angle of transmitter and receiver optionally.
Perfect function in anti-cutting &short circuit, and tamper & pet immunity.
A spherical optical lens, stability and anti-wrong alarm have been strengthened greatly.
All-weather outdoor usage, totally air-proof design.
Anti strong light up to 50000 LUX, totally resistance to external interference.
Easy installation, wire and bus system compatible (MA BUS mode).
Adopts displacing diode, which has solved the problem of interference between near frequencies.
Wire system and bus system compatible, holographic spot real-time report.Model
ES-0240W/L
ES-0340W/L
ES-0440W/L
ES-06100W/L
ES-08100W/L
ES-10100W/L
Outdoor distance
40m
60m
60m
60m
60m
60m
Indoor distance Remark
40m
100m
100m
100m
100m
100m
Number of beams
2
3
4
6
8
10
Optical source
Infrared digital pulse beam
Response Time
10~500ms
Alarm output
NC&NO contact rating AV/DC 30V/0.5A
Alarm output-BUS
MA BUS constant current carrier mode
Working Voltage
DC 9~24V;AC 8~18V
Working current
50mA
60mA
80mA
80mA
80mA
100mA
Long life mode
25mA
30mA
40mA
40mA
40mA
50mA
Temperature
-25℃~55℃
Humidity
5%~95% (RH)
BUS output
RS-485
Tamper output
NC contact rating AV/DC 24V/0.5mA
vertical adjust angle
±2°
Housing material
Aluminium
Anti-dew/frost
Heating cover (optional)
Length
28cm
45cm
63cm
116cm
158cm
200cm
